INSULATION

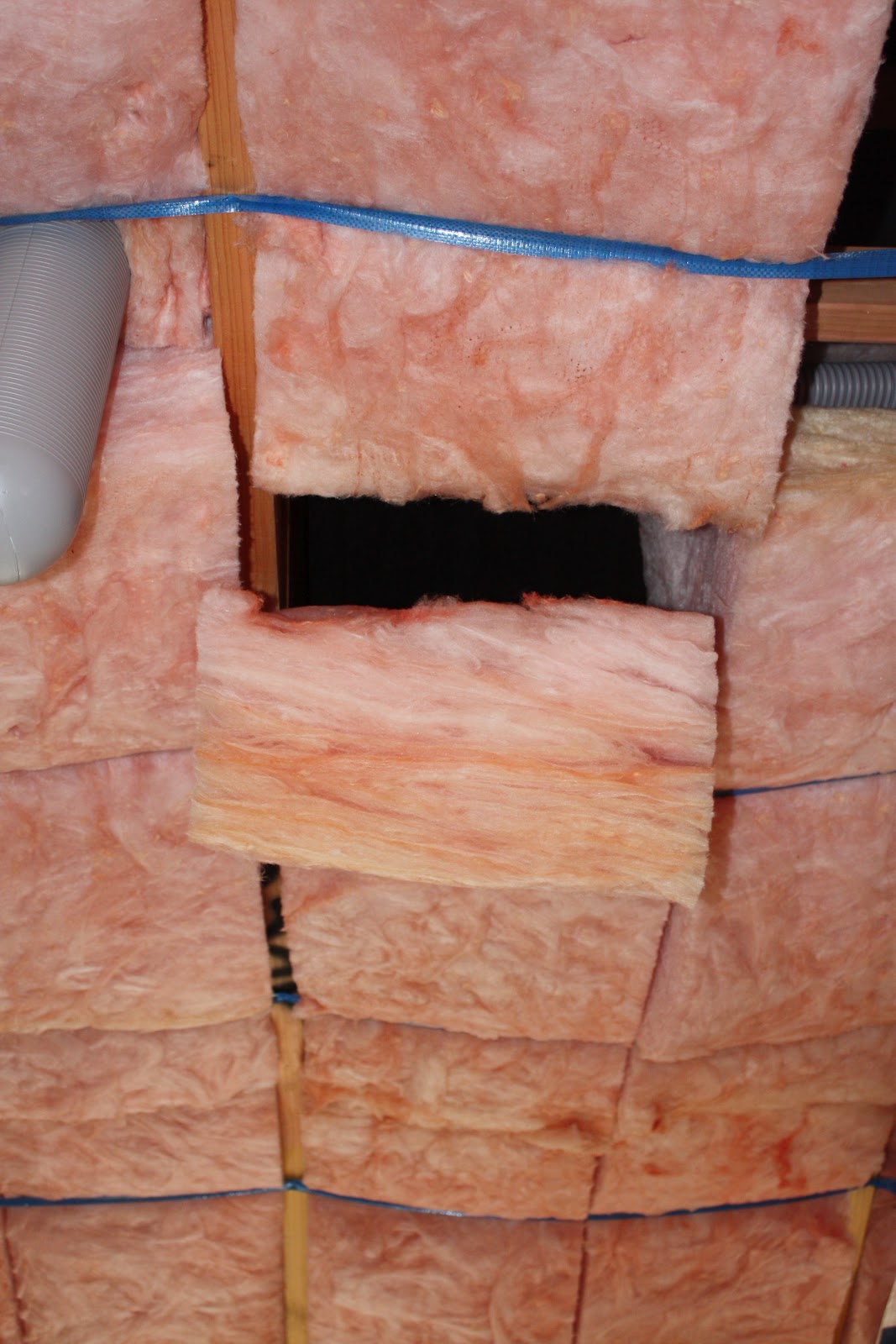

R4.0 'Pink Batts' fibreglass wool  insulation is placed between the roof framing throughout the house, with straps stapled to the timber framing to secure the blankets in place.strapped into position. Once this layer of insulation is installed, a layer of 'Intello' is fixed and taped to ensure airtightness.  Another layer of r2.2 Fibreglass Batts is installed to compensate for the steel structure to ensure there is no thermal bridging.









Once the insulation is installed the proclima 'Intello' membrane is continued and taped to create the continuous airtightness layer.





Gib Rondo batten system is a galvanised metal extrusion that is used for fixing between the timber framing (wall and ceiling in this house) and a second layer of R2.2
insulation is added between the battens.



11 comments:

squashplayer said...

Again, another nice set of photo's. Am I correct in stating that the roof space (above the insulation) is a cold space? The Proclima Intello provides an airtight barrier on the warm side...so does this mean that the cold roof space is NOT airtight and, in fact, would need to be vented? If this is the case is effectiveness of the insulation reduced due to "windwash" i.e airmovement across the top of the insulation?

eHaus said...

A good question to ask! 60% of the roof area has a skillion or flat roof in these areas the 3 layer approach is valid; the roofing underlay can only act as the third layer when there is no air movement between it and the insulation. If there are no provisions for ventilating the roof space, the roofing underlay can be seen as the third layer. If there is however air movement by design (it may be desirable or even necessary to have some for some situations), you need another layer, eg a breathable membrane on top of the insulation. This will also help with keeping the insulation dry, as you can expect some condensate under the roofing with a ventilated roof in clear nights (some underlays are however capable of absorbing this). Basically, it's always a good idea to sandwich insulation.

Regina said...

Excellent blog here! Also your site loads up fast! What web host are you using? Can I get your affiliate link to your host? I wish my site loaded up as fast as yours. Cheers and keep posting New Zealand Wedding

Mark said...

Helpful info discussed I am really pleased to read this particular post..many thanks with regard to providing all of us nice information.Great walk-through. I truly appreciate this article.Wedding Flowers

Alice Chen said...

With the insulation in this house, what would be the R-values that you are aiming to achieve for the roof and walls etc? I'm just curious as to how much higher the values are as compared with building regulations on insulation in New Zealand.

Don said...

Was there any reason not to choose a polyester type product, such as Autex or Insulpro?

Kevin Noel said...

It's a good thing to combine both of these materials. It would help increase the air permeability of this building. And from that, it can maintain a good balance of heat and cold circulation of air in the building. Reducing the uses of heaters and AC unit depending on the type of climate a country has.
